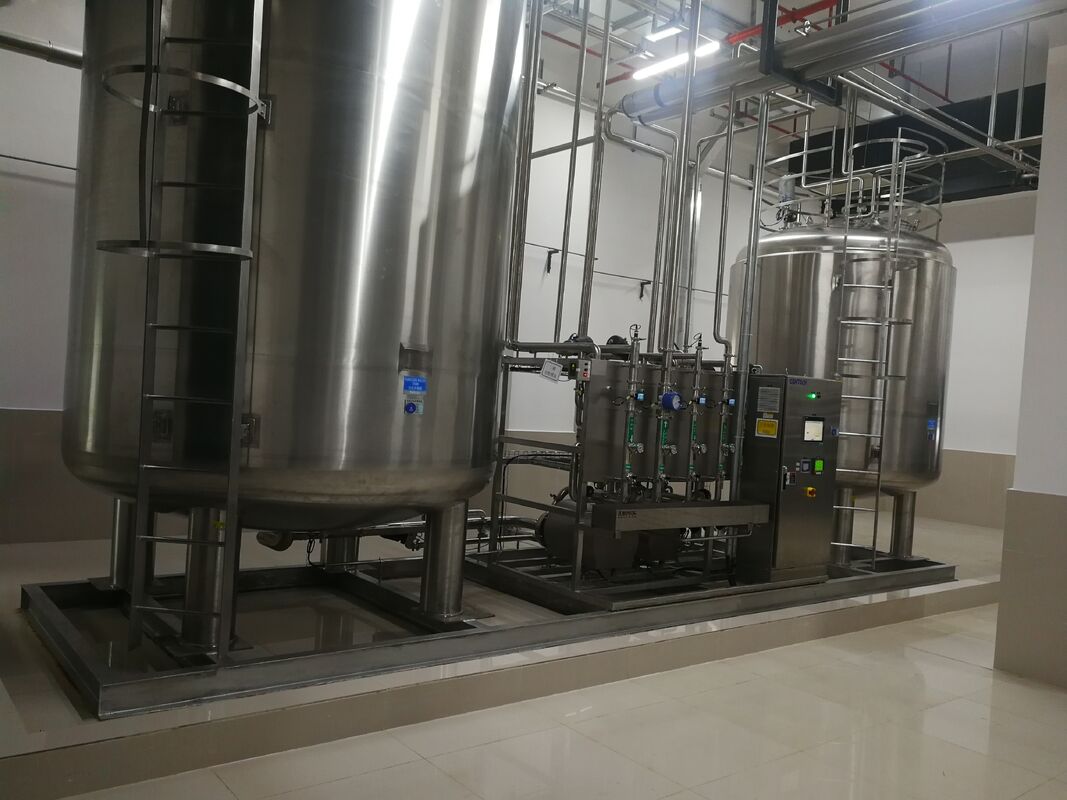

500L Capacity Steam Distillation Plant With Food Grade Stainless Steel PLC Touchscreen Control
| Brand Name: | Echo |
| Model Number: | Echo |
| MOQ: | 1 Set |
| Price: | Contact Us for Pricing |
| Payment Terms: | T/T |
| Supply Ability: | 50+ Sets per Month |
500L Capacity Steam Distillation Plant
,PLC Touchscreen Control Steam Distillation Plant
,500L Capacity Plant Oil Extraction Machine
This 500L steam distillation unit is engineered specifically for high-volume extraction of aromatic essential oils used in spa and wellness industries. Constructed with food-grade SUS304 stainless steel, it features a highly efficient shell-and-tube condenser and an integrated oil-water separator. The system preserves the delicate therapeutic compounds of botanicals like lavender, peppermint, and eucalyptus through precise, low-pressure steam control. With a robust yet modular design, it offers a reliable turnkey solution for manufacturers requiring consistent purity and batch-to-batch uniformity in their aromatherapy product lines.
Producers in the aromatherapy sector face a unique challenge: maintaining therapeutic efficacy while scaling production. Traditional small-batch methods often yield oils with inconsistent chemical profiles due to fluctuating temperatures and pressure. As demand for pure, unadulterated wellness oils surges, manual operations become a bottleneck. Inefficient condensers also lead to significant loss of volatile top notes, which are crucial for fragrance quality. Without automated oversight, operators struggle to meet strict ISO standards for essential oil composition, risking the loss of wholesale contracts and consumer trust in a market driven by purity claims.
This extraction system resolves quality inconsistencies through automated PLC control of the distillation curve. By maintaining temperature accuracy within ±0.5°C, it prevents thermal degradation of sensitive terpenes. The high-efficiency condenser design captures over 95% of vaporized oil, maximizing yield and preserving the full aromatic bouquet. The modular 500L vessel allows for easy integration into existing workflows and scalability to meet rising order volumes. Furthermore, the all-stainless steel construction ensures zero contamination from reactive metals, safeguarding the "natural" and "organic" integrity that wellness consumers demand.
| Parameter | Specification |
|---|---|
| Distillation Method | Steam Distillation |
| Tank Volume | 500 Liters |
| Material | SUS304 Stainless Steel |
| Heating Source | Electric / Steam Compatible |
| Temperature Accuracy | ±0.5°C |
| Condenser Type | Shell-and-Tube with High Efficiency Baffles |
| Control System | PLC with 7-inch HMI Touchscreen |
| Extraction Yield | ≥95% (Volatile Recovery) |
| Safety Compliance | CE Certified, Over-Pressure Relief |
Primarily suited for Aromatherapy & Spa formulations, this machine excels with herbs, flowers, and leaves. It is ideal for extracting lavender oil for sleep aids, peppermint oil for topical rubs, and eucalyptus oil for respiratory blends. The system is also widely adopted by small-to-medium botanical farms looking to add value to their harvest through on-site processing. Additionally, it serves cosmetic labs creating natural fragrance bases for soaps and lotions where solvent-free purity is non-negotiable.
Plant material is packed into the stainless steel chamber, and dry steam is injected at the base. The steam ruptures the plant's oil sacs, vaporizing the volatile compounds. This steam-oil mixture travels upward into the condenser, where cooling water circulates to return it to a liquid state. The liquid drips into a specialized Florentine flask, where the lighter essential oil naturally separates and floats above the water (hydrosol). The operator can then drain off the pure oil while the water layer is either discarded or collected for floral water production.
First, confirm that your primary feedstock (lavender, mint, etc.) responds well to steam distillation. Second, calculate the volume of raw material you process weekly; a 500L vessel typically handles 80-120kg of dry herb per batch. Third, evaluate power infrastructure—choose between electric heating for precise control or steam boiler connection if you have existing steam capacity. Fourth, consider the value of the hydrosol byproduct; if you plan to sell it, ensure the separator design includes a collection port. Finally, verify that the control interface allows you to save and replicate specific time/temperature recipes for GMP compliance.
Q: Can this machine distill roots and wood chips, or only leaves?
A: Yes, it is effective for roots and woods like vetiver or sandalwood. However, for dense, high-oil-content wood, we recommend grinding the material into smaller chips to increase surface area and improve steam penetration efficiency.
Q: What is the typical power consumption per batch?
A: A 500L electric model consumes approximately 45-60 kWh per 4-6 hour extraction cycle, depending on the specific heat capacity of the plant material and the target temperature setpoint.
Q: Do you offer guidance on how to clean the system between different botanicals?
A: Absolutely. We provide a detailed CIP (Clean-in-Place) protocol using a food-grade alkaline cleaner followed by a hot water flush. The stainless steel construction prevents cross-contamination of aroma between batches.
