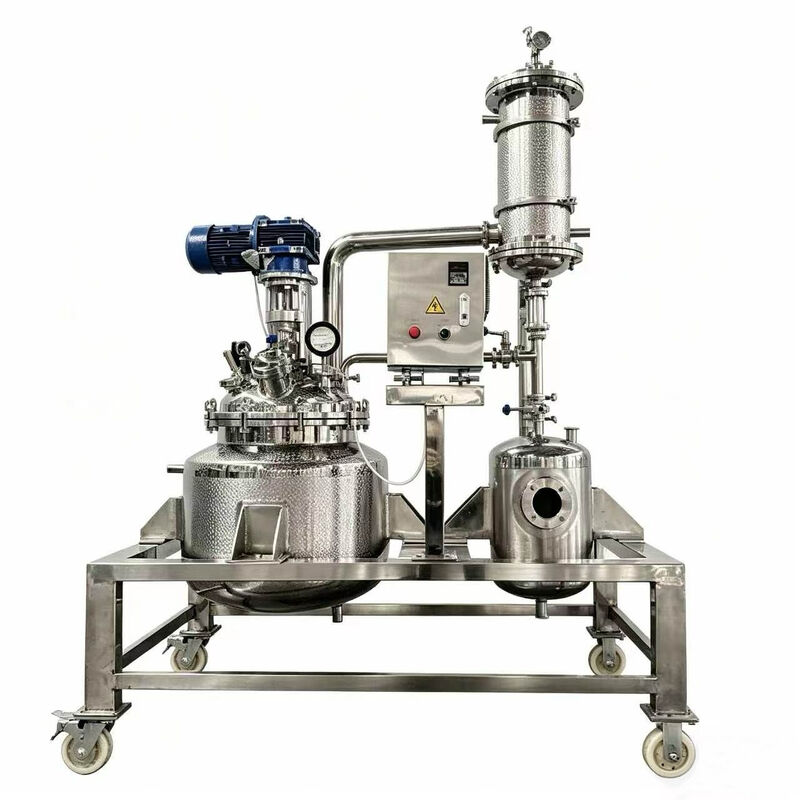

High Efficiency Cold Ethanol Extraction Systems Industrial Continuous Closed Loop

The industrial closed loop ethanol extraction equipment is a high efficiency system designed for large scale extraction of CBD oil extracts essential oils and botanical compounds. It uses food grade ethanol as a solvent to dissolve active compounds from plant biomass in a controlled and efficient way. The system is engineered with a fully sealed closed loop design which allows ethanol to be continuously recycled during production. This reduces solvent loss improves safety and lowers long term operating cost.

Compared with traditional open systems this ethanol extraction equipment offers much higher stability and consistency. It is widely used in CBD production pharmaceutical manufacturing nutraceutical processing and natural plant extraction industries. The system is designed for continuous industrial operation and is suitable for companies targeting the European and North American markets where product quality and compliance requirements are strict.

In traditional ethanol extraction processes manufacturers often face problems such as unstable product quality solvent waste and high operating cost. Open systems allow ethanol to evaporate easily which increases cost and reduces efficiency. Manual operation also leads to inconsistent extraction conditions which affects the final product quality. Without integrated control systems production becomes difficult to scale and difficult to standardize.

Another common issue is poor solvent recovery. Many older systems cannot efficiently recycle ethanol which increases raw material cost and creates environmental concerns. In addition multiple standalone machines are often required for extraction filtration and evaporation which increases complexity and labor requirements. These limitations reduce production efficiency and make it difficult to meet modern industrial standards.

The closed loop ethanol extraction system solves these problems by integrating the entire extraction process into one continuous and sealed system. Ethanol is continuously circulated through the system without exposure to air which greatly reduces loss and improves safety. The system ensures stable extraction conditions by maintaining precise control of temperature and flow rate.

Multi stage filtration removes plant solids and impurities efficiently which improves the purity of the final extract. The integrated solvent recovery system recovers ethanol through evaporation and condensation and returns it to the system for reuse. This reduces operating cost and improves sustainability.

The system can be equipped with PLC automation which allows operators to control all key parameters including temperature pressure and cycle time. This reduces human error and ensures consistent batch quality. The modular design also allows the system to be expanded easily when production demand increases.

This ethanol extraction equipment is widely used in CBD oil production extraction herbal medicine manufacturing nutraceutical production food ingredient extraction and cosmetic raw material processing. It is especially suitable for companies targeting regulated markets such as Europe and the United States where safety compliance traceability and product consistency are required.

In CBD production the system is used to produce full spectrum oil broad spectrum extract and distillates. In pharmaceutical applications it is used for extraction of active plant compounds. In food industry it is used for natural flavor ingredients and plant based additives. In cosmetics it is used for essential oils and botanical active ingredients.

The process begins by loading plant biomass into the extraction vessel. Ethanol is added into the system and circulated through the material to dissolve active compounds such as cannabinoids terpenes and flavonoids. The system maintains controlled temperature conditions to ensure optimal extraction efficiency.

After extraction the mixture is passed through filtration systems to remove plant solids and impurities. The solution then enters the solvent recovery stage where ethanol is separated from the extract using controlled evaporation and condensation. The recovered ethanol is returned back into the system for reuse.

This closed loop process allows continuous operation with minimal waste high efficiency and stable product quality.

When selecting ethanol extraction equipment several factors must be considered. The first is production capacity. Small scale operations may choose 100 liter to 200 liter systems while industrial manufacturers should choose 500 liter to 2000 liter systems for continuous production.

The second factor is automation level. Semi automatic systems are suitable for small facilities but fully automatic PLC systems are recommended for large scale production because they reduce labor cost and improve consistency.

The third factor is solvent recovery efficiency. A recovery rate above 95 percent is important for reducing cost and improving sustainability. The fourth factor is material grade. Stainless steel 316L is recommended for pharmaceutical and food grade production.

The final factor is system scalability. Modular systems are preferred because they allow future expansion without replacing the entire production line.
