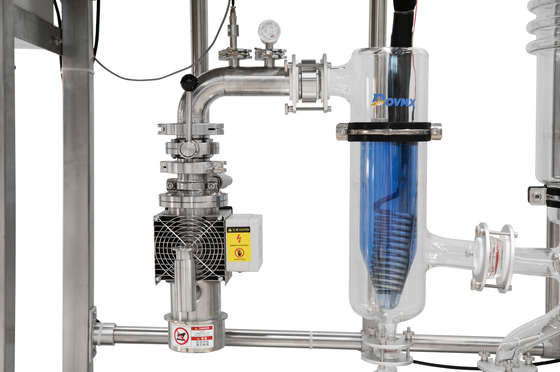

High Purity Short Path Distillation Plant With Continuous Processing Ultra Thin Film Mechanism

This advanced Short Path Distillation Plant integrates the critical Wiped Film mechanism to deliver the ultimate in continuous, high-purity molecular separation. The system represents a synergistic fusion of "short path" architecture—characterized by a close-proximity internal condenser—with the mechanical precision of a rotating wiper assembly that generates a dynamic, ultra-thin film. This combination is scientifically superior to simple, static laboratory short-path glassware for any pilot or production-scale processing, bringing unmatched heat transfer rates and minimal pressure drop. It is the solution for manufacturers who require the gentle separation of a molecular still but have outgrown the severe limitations of batch pot distillation and need true industrial-grade reliability.

The classic short-path distillation rig found in many small labs, with its static boiling flask and magnetically stirred pool, is an effective analytical tool but a deeply flawed production device. The thermodynamics of such a setup are profoundly inefficient at scale. A stagnant liquid pool relies on natural convection, creating a temperature gradient where the liquid touching the hot glass is significantly overheated while the surface layer is too cool. This leads to hot-spot decomposition and poor, unstable boiling rates. The "short path" distance, while a great concept for reducing pressure drop, still means a boiling component must migrate through a thick layer of collapsing liquid before it can escape the surface, leading to a molecular traffic jam that increases the effective residence time to minutes or hours—canceling the "gentle" benefit of a short vapor path entirely.

Our plant resolves this contradiction by applying mechanical thin-film generation to the short-path architecture. We replace the static boiling pot with a heated, jacketed cylinder featuring a central rotor and precision wipers. These wipers instantly form a turbulent, ultra-thin film (0.1-0.5 mm) that ensures every micro-volume of feed liquid is exposed simultaneously to the same precisely controlled heating surface. There are no stagnant pools, no thermal gradients, and no thickness barrier to molecular escape. The short path to the closely-mounted internal condenser stays, but now the vapor molecules travel freely from a constantly renewed film surface, achieving a true sub-second residence time. This elegantly combines the low-pressure-drop benefit of a short path with the forced heat and mass transfer of a wiped film, delivering a continuous, stable stream of distillate and residue rather than a slow, degrading batch cycle, enabling true 24/7 production without quality drift.

• Scale-Up Bridge: A must-have for startup companies transitioning an R&D bench process to commercial-scale continuous flow.

• High-Purity Monomers: Optical monomers and specialty acrylates requiring single theoretically-perfect plate separation.

• Complex Natural Extracts: Replacing an old short-path batch kettle with an automated, continuous version for higher capacity and consistency.

• Advanced Thermally Labile Drugs: Production-scale API distillation where a static batch pot consistently fails to meet FDA-required low impurity profiles.

Feed liquid enters a degassing stage before flowing to the heated main evaporator. Here, a high-performance rotor with integrated wipers mechanically spreads the oil or chemical into a film on the hot body. The extremely short distance between the heated film and the central internal condenser is the "short path." Light fractions sublime or evaporate off the film and are captured on the condenser, while heavy, unevaporated residues drain continuously downwards. Unlike a simple pot still, the rate of evaporation is controlled not by luck and pool depth, but by precisely metering the feed pump and tuning the rotor speed, giving operators complete control over contact time.

If your current batch pot cycle is 8+ hours and product purity or color is inconsistent, you are ready for a continuous wiped film short path plant. The key criterion is the physical nature of your feed: if it is viscous, waxy, or prone to foaming in a static still, the mechanical wiper system is not an upgrade but a necessity. Start by mapping your batch distillation curve and current yield—we can replicate and exceed this in a single-pass trial. Consider the cost of product decomposition; if degradation is costing even 2% of your batch yield, a continuous system will pay for itself rapidly. The correct system is sized purely on evaporative surface area (m²), calculated from a pilot run’s evaporation rate (kg/m²/hr), ensuring a linear, risk-free scale-up to the output you require.

1. Q: I already have a glass rotary Short Path setup. Why is this better?
   A: A glass rotary evaporator is a batch process, limited to a few liters per run, with a pool boiling mechanism. Our system is a continuous industrial plant, using a refined mechanical film theory to process dozens to thousands of liters per hour with superior thermal control and consistency, making it a production tool, not a lab tool.

2. Q: Is the "short path" distance actually different from a standard Wiped Film?
   A: Our integrated design optimizes both. The Wiped Film mechanism creates the evaporating film to overcome mass transfer limits, while the Short Path architecture (placing the condenser inside the evaporator body) minimizes vapor transit pressure drop, which is vital for the lowest temperature operation on extreme heat-sensitive materials.

3. Q: Can this system replace two stages of batch distillation?
   A: Frequently, yes. The sharp fractionation achievable with our precisely controlled, continuous thin-film system often yields a purer core fraction in one pass than two rounds of crude batch pot distillation, dramatically cutting energy use and processing time.

4. Q: Is it more difficult to clean than a simple glass pot flask?
   A: While not as simple as discarding a glass flask, the low hold-up and continuous scraping action mean most residues are evacuated while still fluid. It can then be cleaned by a quick CIP process of boiling hot solvent recirculation, making it far more efficient than manually scrubbing a large reactor.
