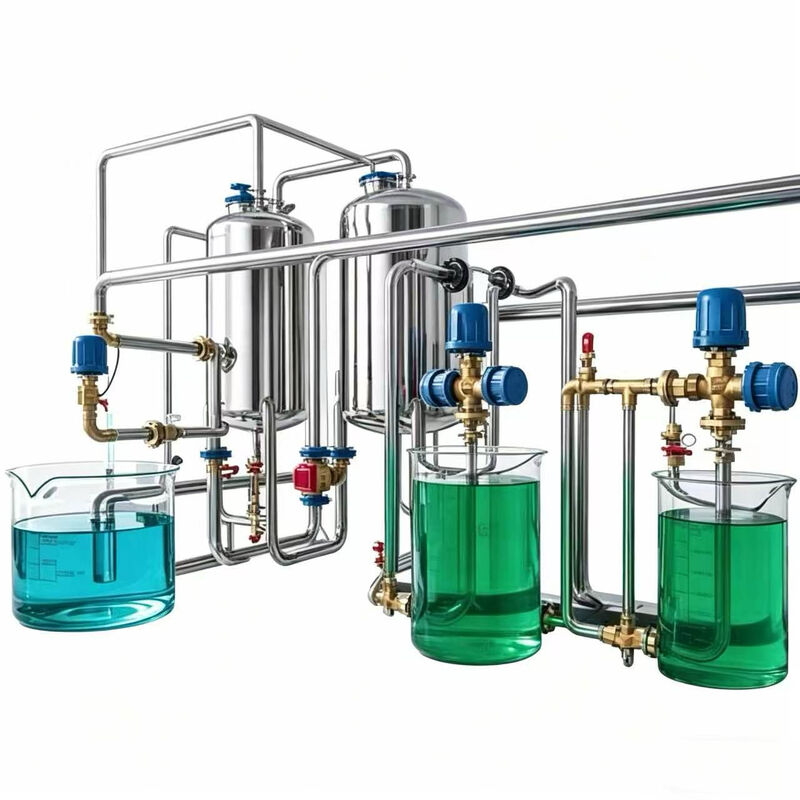

Explosion Proof Ethanol Recovery Machine High Efficiency For CBD Oil Processing

Explosion-Proof Ethanol Solvent Recovery System for CBD Oil &  Extraction Post-Processing

Product Overview

This closed-loop Ethanol Solvent Recovery System is purpose-built for the safe, high-efficiency recovery of ethanol from cannabi s and hem p crude extract miscella. Designed to handle the large solvent volumes typical of chilled ethanol extraction, the system integrates a high-capacity evaporator with a precision condenser and a fully sealed, nitrogen-blanketed collection circuit. Constructed to NEC Class I, Division 2 and ATEX directives, it ensures inherently safe operation while recovering over 98% of the solvent for immediate reuse, producing a thick, pumpable crude oil ready for decarboxylation and distillation. For operators drowning in solvent purchasing costs and hazardous waste disposal fees, this skid-mounted recovery plant transforms ethanol management from a profit-eroding burden into a lean, controlled, and environmentally sustainable closed-loop process element.

Cause: The Crushing Financial and Safety Cost of Single-Pass Solvent Use

In cryo-ethanol extraction, the solvent-to-biomass ratio is enormous, often 5:1 to 10:1 by volume. Operators who fail to implement an efficient in-house recovery system face quadruple losses. First, the direct purchase cost of fresh, high-proof ethanol for every batch is prohibitive at scale. Second, the resulting huge volume of low-concentration ethanol-water waste is classified as hazardous flammable liquid, incurring astronomical disposal fees and a massive carbon footprint from off-site tankering. Third, evaporating this solvent in open or poorly sealed stills fills the facility with a flammable vapor atmosphere, creating an immediate process safety and worker exposure disaster. Finally, valuable cannabinoid-rich oil is inevitably lost when entrained in the waste solvent stream, bleeding yield.

Solution: A High-Efficiency, Inherently Safe Closed-Loop Recovery Skid

Our Solvent Recovery System solves this entire problem by enabling true continuous solvent recycling. Post-extraction, the ethanol miscella is fed into a wiped film or falling film evaporator section operating under a mild vacuum. This instantly flashes off the bulk of the ethanol at a temperature far below its atmospheric boiling point, protecting the cannabinoids from thermal degradation. The solvent vapor then travels into a high-efficiency, water-cooled or glycol-chilled shell-and-tube condenser, where it is reliquefied and piped into a dedicated, sealed recovery receiver for immediate reuse in the next extraction cycle. The entire system is blanketed with inert nitrogen and monitored by LEL gas sensors and redundant safety shutdowns, transforming a dangerous evaporation task into a push-button, fully automated sequence with >95-99% solvent recovery efficiency.

Specifications

Application

• CBD/THC Extraction: Recovering ethanol from post-centrifuge miscella in large-scale cold extraction.

• Crude Oil Concentration: Stripping ethanol to produce a thick, decarboxylation-ready crude oil.

• Tincture Manufacturing: Recovering alcohol from medicinal tinctures while preserving phytochemicals.

• Post-Filtration Rinse: Recycling ethanol used to rinse filter presses and winterization tanks.

How It Works

The ethanol-oil miscella is continuously pumped into the vacuum evaporator body, which is heated by a jacketed hot water or thermal fluid circuit. Inside, the solvent instantly volatilizes, separating cleanly from the heavier cannabi s oil that flows downward. The solvent vapor travels through a demister pad to remove any entrained oil droplets, then enters the chiller condenser. The recovered ethanol condensate is collected in a sealed, nitrogen-cushioned receiver, while the concentrated, largely ethanol-free crude oil is continuously discharged from the evaporator residue pump. All critical temperatures, pressures, and LEL levels are constantly monitored, with automatic system shutdown if any safety deviation is detected.

How To Choose: Sizing a Safe Ethanol Recovery System

The critical input is your daily ethanol throughput in liters and the desired concentrated crude oil discharge rate. An initial pilot trial on our 0.25 m² unit provides the exact evaporation flux rate (kg ethanol evaporated per m² per hour) for your specific oil-solvent ratio. Never under-specify the condenser’s cooling capacity, as an undersized condenser is the most common cause of solvent emission and recovery loss. Insist on an integrated LEL gas detection system and nitrogen purge capability for the evaporator body as a standard non-negotiable safety feature. Ensure the control system allows for a controlled vacuum ramp to prevent the violent initial foaming that ethanol-oil mixtures exhibit at start-up.

FAQ

1. Q: Is the recovered ethanol pure enough to reuse directly in the next extraction?
   A: Yes. Because the system separates ethanol by distillation, the recovered solvent is typically 190+ proof and analytically clean of any cannabinoid carryover. A small bleed stream is purged to remove any water built up from the biomass, maintaining consistent purity over dozens of cycles.

2. Q: How do you prevent a flammable atmosphere inside the evaporator?
   A: The entire system is maintained under a nitrogen blanket, with the oxygen level continuously monitored. Before any heating begins, an automated purge cycle reduces the O2 concentration well below the limiting oxygen concentration for ethanol vapor, making the vessel atmosphere inert and intrinsically safe.

3. Q: Does the heating degrade my cannabinoids during solvent stripping?
   A: By operating under vacuum, the ethanol boils at 30-40°C instead of its atmospheric 78°C. Combined with a very short residence time inside a Wiped Film evaporator, the crude oil sees minimal heat stress, preserving a light color and full acidic cannabinoid profile.

4. Q: What kind of yield loss can we expect on the oil side?
   A: Very low. The demister system and the wiped film’s efficient separation mean residual oil carryover into the solvent is typically less than 0.5%. The concentrated crude discharge is a clean, solvent-poor sludge perfectly suited for your decarboxylation reactor.
