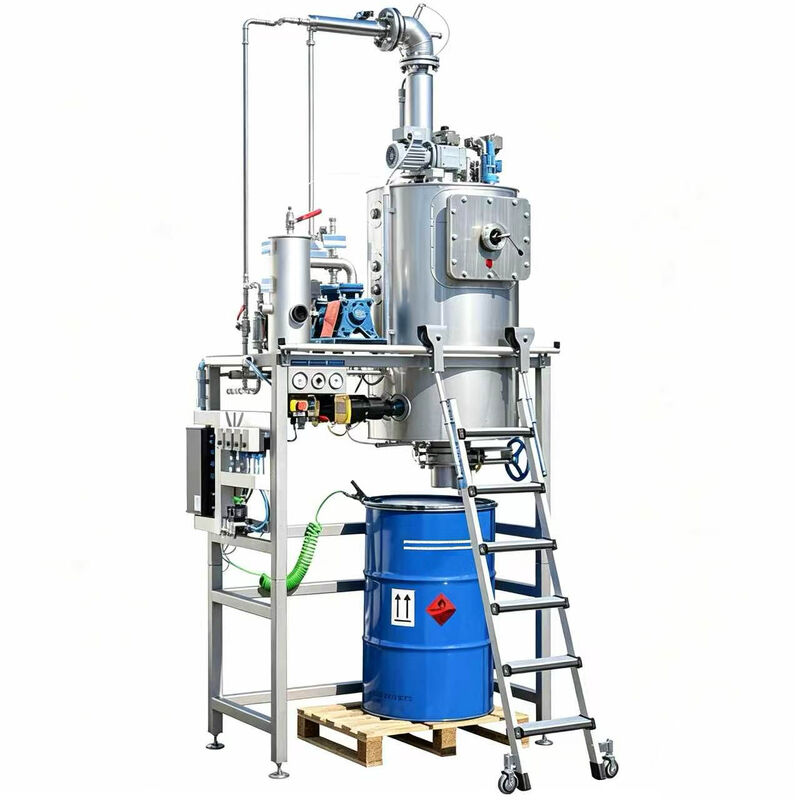

Hydrocarbon Solvent Recovery Systems Safe Environmental Friendly
| Brand Name: | Echo |
| Model Number: | Echo |
| MOQ: | 1 Set |
| Price: | Contact Us for Pricing |
| Payment Terms: | T/T |
| Supply Ability: | 50+ Sets per Month |
Safe Solvent Recovery Systems
,Safe solvent recycling system
,Environmental Friendly Solvent Recovery Systems
C1D1 Hydrocarbon Solvent Recovery System for Butane & Propane Reclamation in BHO & Extraction
This fully certified, Class I Division 1 Hydrocarbon Solvent Recovery System is engineered for the closed-loop reclamation of butane, propane, and their blends from botanical extraction processes. Designed from the ground up to meet the stringent safety demands of highly flammable gas processing, it integrates a spark-proof mechanical structure, intrinsically safe instrumentation, and a high-capacity gas compressor train to continuously recover and re-liquefy solvent from post-extraction oil solutions. The system achieves 99%+ hydrocarbon recovery in a fully sealed, emissions-controlled circuit that eliminates any venting to the atmosphere. For BHO and light-hydrocarbon extractors scaling their process, this platform eliminates costly single-use solvent purchases, transforms a hazardous open-evaporation step into a safe, push-button sequence, and unequivocally demonstrates a commitment to safety and environmental compliance.
Open-blasting or simple passive recovery in hydrocarbon extraction is an era that must end. The direct purchase cost of high-purity n-butane or instrument-grade propane is a continuous, six-figure drain for any significant production facility. Passive recovery relies on differential heating and cooling, which is agonizingly slow and leaves 10-15% of the solvent dissolved in the thick crude oil, which then must be boiled off in a less controlled manner downstream, releasing VOCs. Safety is the overwhelming concern: any vented or leaked hydrocarbon creates a dense, ground-hugging flammable gas cloud that can find an ignition source metres away. The process also lacks the active pumping control necessary to completely decouple solvent from extract, creating a permanent process bottleneck that limits daily biomass throughput to the speed of a passive loop, not the speed of production demand.
Our Hydrocarbon Solvent Recovery System replaces passive recovery with an active, compressor-driven refrigeration cycle. The hydrocarbon-oil solution is gently heated in a rated pressure vessel under controlled pressure. A certified, leak-proof hydrocarbon compressor pulls the vapor from this vessel, compresses it, and pushes it through an air- or water-cooled condenser, where it reliquefies and flows into a clean solvent storage tank, ready for the next run. This active compression overcomes the vapor pressure equilibrium that stalls passive systems, driving recovery to over 99% and leaving behind a virtually solvent-free, pourable concentrate. The entire loop is a fully welded, pneumatically or electrically actuated, intrinsically safe circuit, continuously monitored by hydrocarbon leak detectors and equipped with a high-flow emergency ventilation and suppression system. It turns solvent handling into a controlled manufacturing step with no manual transfers and zero atmospheric emissions.
| Parameter | Specification |
|---|---|
| System Series | SR-HC (Solvent Recovery, Hydrocarbon) |
| Solvent Type | n-Butane, Isobutane, Propane, and Blends |
| Hazard Certification | NEC Class I, Division 1, Groups C & D |
| Recovery Method | Active compression, mechanical re-liquefaction |
| Recovery Rate | >99% |
| Circuit Design | Fully welded stainless steel, bellows-sealed valves |
| Compressor Type | Certified hydrocarbon-rated, spark-proof pneumatic or electric |
| Condenser | High-pressure, ASME-rated, air or water-cooled |
| Safety Systems | IR hydrocarbon sensors, pressure relief manifold, emergency ventilation interlock |
| Control | Intrinsically safe remote I/O, automated recovery sequence |
BHO Extraction: Continuous solvent recovery during butane-based extractor cycles.
Propane Refinement: Recovering propane from a cold solvent fractionation column.
Terpene-Specific Stripping: Gentle, low-temp hydrocarbon removal to save volatile monoterpenes.
Pre-Distillation Dewax: Ethanol-free, in-line solvent stripping that precipitates waxes simultaneously.
A pressure vessel containing the hydrocarbon-oil solution is warmed by a recirculating hot water jacket. The compressor, the heart of the system, pulls a slight vacuum on this vessel's vapor space relative to the condenser, actively pumping the hydrocarbon vapor into the shell-and-tube condenser, which is cooled by a glycol chiller or ambient air radiator. The liquid solvent drips into a clean receiver. The recovery cycle terminates at a deep vacuum held point, indicating all free solvent is removed. A final nitrogen break returns the system to atmospheric pressure, and the concentrated, solvent-free oil is drained from the collection vessel. The PLC manages all stages, constantly checking for the electrical continuity of the static bonding system and monitoring room LEL sensors.
The necessary compressor volumetric displacement is calculated from your extractor batch size and the desired recovery cycle time. A larger compressor gives a faster cycle but demands a correspondingly powerful condenser to reject the heat of compression. Insist on ASME-certified pressure vessels and National Board-registered safety relief devices; a burst disc alone is insufficient—it must vent into a safe location via a stack. Ask for a written Hazardous Area Classification assessment from the supplier and a detailed cause-and-effect matrix for the safety shutdown PLC. The system must be installed in a proper C1D1 booth with continuous ventilation designed per NFPA and local fire code.
Q: How do you guarantee no leaks in a system handling such a penetrating gas?
A: Every weld is fully radiographed or bubble-point tested. The assembly is helium leak-checked to a certified rate before shipment. Bellow-sealed valves and magnetically coupled pumps completely eliminate the shaft-seal leaks that are typical in conventional rotary equipment.Q: Is active recovery faster than passive recovery?
A: Significantly. A properly sized compressor can complete a solvent recovery cycle in under one hour, compared to a multi-hour passive wait. For a high-throughput production lab, this single variable can triple the number of extraction cycles possible per day.Q: Can this system remove all butane so no residue remains?
A: Yes. The active compressor pulls a deep vacuum on the heated oil, physically reducing the partial pressure to a point where residual hydrocarbons are undetectable in a residual solvent test. Your crude oil is pourable and ready for the next purification stage without an additional degassing oven.Q: What happens if the compressor fails during a recovery?
A: The automated system goes into a safe halt state: heating stops, valves close, and the system pressure is safely contained. The system is monitored 24/7, and an alarm is triggered. Because the process is fully closed, there is no continuous leak path to atmosphere during a shutdown.
