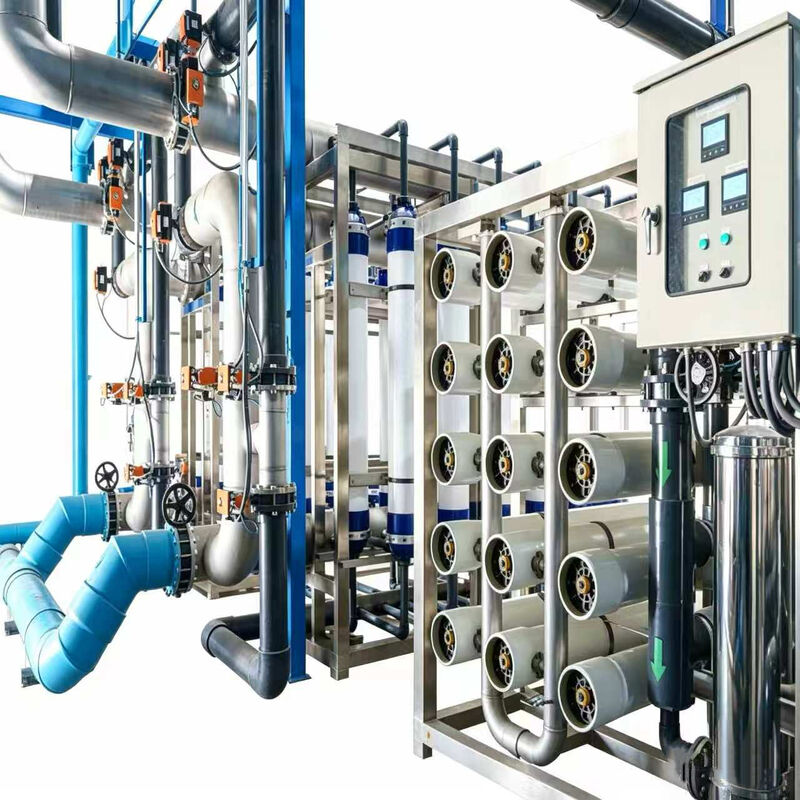

Ultra High Purity Purification Systems SS316L High Performance For Electronic Chemicals
| Brand Name: | Echo |
| Model Number: | Echo |
| MOQ: | 1 Set |
| Price: | Contact Us for Pricing |
| Payment Terms: | T/T |
| Supply Ability: | 50+ Sets per Month |
Ultra High Purity Purification System
,Electropolished SS316L Purification System
,Electropolished SS316L purification machine
This dedicated Purification System is engineered for the stringent requirements of fine chemical and electronics manufacturing, where trace metal contamination and particle counts are non-negotiable. Integrating a high-performance Wiped Film Evaporator with a fully enclosed, inert gas-capable loop, this system achieves the continuous, low-temperature stripping of unreacted monomers, high-boiling solvents, and color bodies from specialty chemicals. Designed for purifying products ranging from UV-curable monomers and optical-grade acrylates to NMP recovery in lithium battery production, it delivers exceptional separation efficiency with no pool boiling or fouling. The system is built from electropolished SS316L or wetted Hastelloy, ensuring ionic purity, and is the definitive tool for chemical manufacturers needing to upgrade technical-grade chemicals to the demanding parts-per-billion purity levels required by semiconductor and advanced material applications.
Producing ultra-high purity chemicals for electronics, advanced optics, or medical polymers places extreme demands on purification. Standard batch distillation columns introduce metal ion contamination due to prolonged contact with hot stainless steel and low-velocity flows that permit corrosion and leaching. Additionally, the static liquid pool within a batch still catalyzes the formation of polymerized "popcorn" and gel bodies that break off into the product as visible particles and specks. For a manufacturer attempting to produce an optical-grade adhesive or an LCD monomer, this means failing key specifications: metal ion content exceeding 50 ppb, APHA color failing above 5 Hazen, or unacceptably high particle counts. These defects lead to scrapped high-value batches and lost contracts in an industry where a single out-of-spec shipment can sever a supply chain.
Our Purification System eliminates contamination through a mechanical film design and material-conscious construction. The rotating wiper assembly creates an ultra-thin film at the heated wall, which ensures the chemical is exposed to the precise distillation temperature for just seconds, dramatically reducing any opportunity for thermal polymerization or metal leaching. The entire system is configured with 316L reactor-grade stainless steel, electropolished and passivated for minimal ionic shedding, and sealed under an inert nitrogen blanket to exclude moisture and oxygen. This continuous, high-vacuum process effectively strips residual monomers from a polymer matrix to ppm levels or recovers expensive high-boiling solvents like NMP and PGMEA at low temperatures, delivering consistent, ultra-clean product without the batch-to-batch particle spikes and color variation endemic to traditional stills.
| Parameter | Specification |
|---|---|
| System Series | PS-Electro (Purification System, High Purity Grade) |
| Materials of Construction | SS316L electropolished, Hastelloy C-276, PTFE/PFA wetted |
| Vacuum Rating | < 0.001 mbar, absolute |
| Metal Ion Control | Design minimizes Fe, Ni, Cr leaching (verifiable by ICP-MS) |
| Inert Gas Blanketing | Full system purging capability, positive N2 pressure seal |
| Particle Control | Sanitary design, zero dead-legs, optional 0.2µm discharge filter |
| Heating/Cooling | Fully jacketed, rapid-response thermal oil loops |
| Automation | PLC with ATEX/IECEx certified option for flammable solvents |
| Serviceability | Clean room-compatible exterior; fast-breach flange for inspection |
-
Electronics-LCD/Semiconductor: Final monomer stripping from reactive oligomers and purification of photoresist solvents.
-
Optical Monomers: Purification of high-refractive-index acrylates and epoxies to water-white clarity.
-
Lithium-Ion Battery: Continuous recovery and repurification of high-boiling NMP from electrode coating lines.
-
Specialty Polymer Intermediates: Stripping unreacted diisocyanates from prepolymers to achieve ppm-free status.
The chemical feed is precisely metered into the degassing zone before entering the main heated body. Under a deep vacuum, the rotating wipers dynamically spread the fluid into a thin, constantly renewed film, promoting rapid mass transfer. The targeted light fraction (unreacted monomer or solvent) flash-evaporates and condenses on the internal condenser, flowing into a vacuum-sealed receiver. The purified base polymer or heavy solvent travels separately down the heated body, continuously exiting through a positive displacement pump. The entire process occurs within a sealed, chemically inert chamber, completely isolating the product from contaminants.
The primary engineering decision revolves around chemistry corrosivity. For non-corrosive monomers, SS316L electropolished is sufficient. If trace chlorides or acidic impurities are present, a Hastelloy C-276 evaporator body is essential to prevent pitting and metal contamination. Define your vapor load precisely; a solvent stripper for NMP will be sized primarily on the latent heat of evaporation, whereas a monomer striker requires deeper vacuum to avoid polymerization. Always request a particle generation study during the pilot trial. Crucially, specify magnetic drive on the feed and residue pumps to eliminate the risk of mechanical seal leakage and lubricant contamination into a ppb-sensitive stream.
-
Q: What guarantees can you provide on metal ion contamination levels?
A: We provide a material compatibility and extractables protocol. For a specific product, we can run a pilot trial and analyze the resulting distillate by ICP-MS to certify that metal ion leaching from the system stays below specified thresholds, typically single-digit ppb for catalytic metals. -
Q: Can the system handle monomers that are prone to self-polymerizing?
A: Yes. The short residence time is a critical advantage. We also incorporate internal inhibitor dosing systems and precise film temperature control to safely process acrylic and styrenic monomers without forming popcorn polymer or fouling the internal surfaces. -
Q: How do you guarantee the system is free of leaks and moisture for anhydrous applications?
A: The entire skid is factory helium leak tested to a rate < 1x10^-9 mbar l/s. We conduct a full vacuum breakdown test and a positive pressure test with nitrogen, providing you a certification that the assembly is dry and leak-tight before start-up. -
Q: What about the recovery yield for an expensive solvent like NMP?
A: Our continuous purification systems are designed for >99% recovery efficiency. By coupling the Wiped Film unit with a chilled condenser, we minimize losses to the vacuum line, ensuring nearly the entire solvent volume is recovered at a spec suitable for direct reuse. -
Q: Is an explosion-proof configuration standard?
A: For any system handling flammable solvents (Class I, Div 1), we provide a fully certified ATEX or IECEx compliant package, including purged/pressurized control panels, intrinsically safe sensors, and conductive-lined components to ensure safe, insurance-compliant operation.
