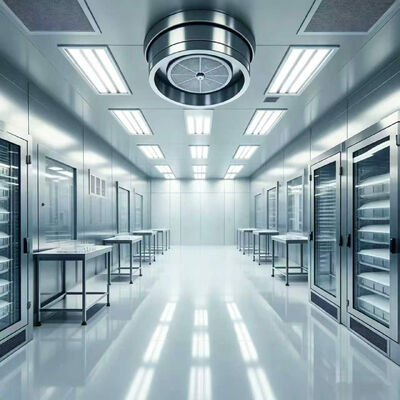

Modular GMP Cleanroom System Rapid Deployment For Sterile Pharmaceutical Production
| Brand Name: | Echo |
| Model Number: | Echo |
| MOQ: | 1 Set |
| Price: | Contact Us for Pricing |
| Payment Terms: | T/T |
| Supply Ability: | 50+ Sets per Month |
Modular GMP Cleanroom System
,Rapid Deployment GMP Cleanroom System
,Modular gmp room
Achieve full GMP compliance with our modular cleanroom system, pre-engineered to meet ISO 5 (Class 100) through ISO 8 (Class 100,000) standards. Designed for rapid deployment in pharmaceutical, biotech, and medical device facilities, this turnkey solution integrates walls, ceilings, HVAC, and monitoring in one coordinated package. Every component complies with the latest EU GMP Annex 1 and FDA cGMP requirements. You get a fully validated controlled environment that slashes on-site construction time by up to 60% while delivering guaranteed particle and microbial control for aseptic filling, R&D labs, and secondary packaging.
Sterile dru g manufacturing faces an escalating regulatory burden. A single deviation in cleanroom conditions can lead to batch rejection, FDA warning letters, or even product recalls that cost millions. Traditional stick-built cleanrooms struggle with leaks, poor pressurization, and dead corners where microbes can thrive. Moreover, timing is critical: conventional construction takes months, delaying product to market. You need an environment where viable and non-viable particles are rigorously controlled, airflow patterns are validated, and every surface is cleanable down to the last corner — all without the messy, unpredictable on-site construction variables. Failing to provide this places entire pipelines at risk.
Our modular GMP cleanroom replaces unpredictable site builds with factory-fabricated panels, integrated fan filter units (FFUs), and pre-tested walkable ceilings. The system arrives at your facility with full material traceability, surface roughness data for 304/316L stainless steel options, and sealing certificates. We deliver a fully documented DQ/IQ/OQ/PQ package, enabling immediate start of your aseptic processes. Because the system is demountable and expandable, it protects your capital investment into the future. Every joint is flush and crevice-free; flush-glazed viewing panels make supervision possible. From powder-coated aluminum profiles to zero-porosity epoxy flooring interfaces, we eliminate every harbor point.
| Parameter | Specification |
|---|---|
| Cleanliness Classes | ISO 5 (A), ISO 7 (C), ISO 8 (D) (ISO 6/B available) |
| Panel Construction | 50mm/60mm rockwool or PU core, 0.5mm PE-coated GI skin |
| Surface Finish | Anti-static, anti-bacterial coating to ISO 14644-4 |
| Airf low Ceiling | HEPA H14 FFU, 99.995% at 0.3µm, BIBO option |
| Pressurization | Active differential control, >15Pa cascade |
| Door Options | Flush single/double leaf, sliding, interlocked |
| Documentation | DQ, IQ, OQ, PQ protocols, Factory Acceptance Test |
| GMP Compliance | EU GMP Annex 1, FDA 21 CFR Part 210/211, ISO 14644 |
-
Sterile injectable filling isolator suites (Grade A/B background)
-
Cell & gene therapy processing Grade B/C rooms
-
Pharmacy compounding (USP <797>/<800>)
-
Medical device clean assembly (ISO 7/8)
-
GMP-compliant sampling and weighing booths
-
QC microbiology labs with positive/negative pressure zones
The modular panel system uses a tongue-and-groove lock tightened by a hidden eccentric cam, creating a perfectly flat, gasketless joint. When combined with positive pressure HVAC, HEPA-filtered air sweeps downward in a unidirectional piston in Grade A zones, carrying particles away. The return air risers are integrated inside the wall cavity, minimizing turbulence. Differential pressure sensors monitor each room, modulating VAV dampers to maintain cascade. The entire cycle is mapped in real-time onto a BMS with alarm capabilities, ensuring that a door left open or a filter loading instantly triggers corrective action.
First, define your target process and its GMP grade. Aseptic filling requires Grade A with Grade B background; solution preparation typically needs Grade C. Consider future flexibility — do you need demountable walls? Evaluate floor flatness and available ceiling height (minimum 2.7 m for walkable ceiling). Next, clarify monitoring requirements: continuous particle counts, settle plates, and active air sampling locations. We provide a free layout consultation using CFD simulation, so please share your URS (User Requirement Specification) and we will return a compliance matrix aligning every requirement to GMP clauses.
Q1: How long does it take to install a 100m² modular GMP cleanroom?
A: Typically 4–6 weeks from delivery to qualified status. This includes assembly, sealing, HVAC integration, and start of IQ/OQ, dramatically faster than conventional construction.
Q2: Can the cleanroom be expanded later?
A: Yes. Modular design allows you to add extra bays without structural modifications, simply by removing end panels and extending the suite.
Q3: What validation documents do you provide?
A: We deliver a full turnkey package: Design Qualification (DQ), Installation and Operational Qualification (IQ/OQ) protocols executed, and support for Performance Qualification (PQ). HEPA filter integrity and air velocity test reports are included.
Q4: Is your system resistant to cleaning agents like hydrogen peroxide?
A: Absolutely. We offer VPHP-compatible sealants and 316L stainless steel furniture; the panel coating resists vaporized H2O2 and common disinfectants.
